Brush Blazer® Parts List
This page lists common replacement parts for the Brush Blazer. If you don’t see what you’re looking for, give us a call. We’ll be happy to help.

Complete Parts Diagram is an interactive PDF, so please download the file, if links are not working.
Model
|
Part#
|
Part Description
|
Quantity
|
Price
|
 |

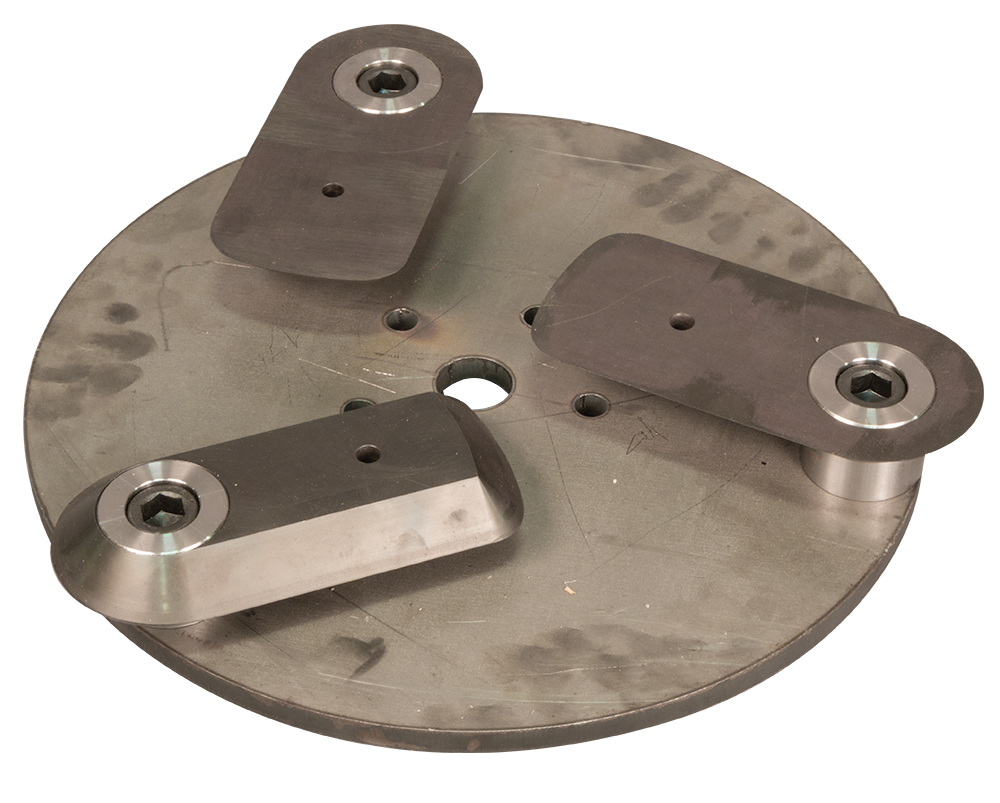

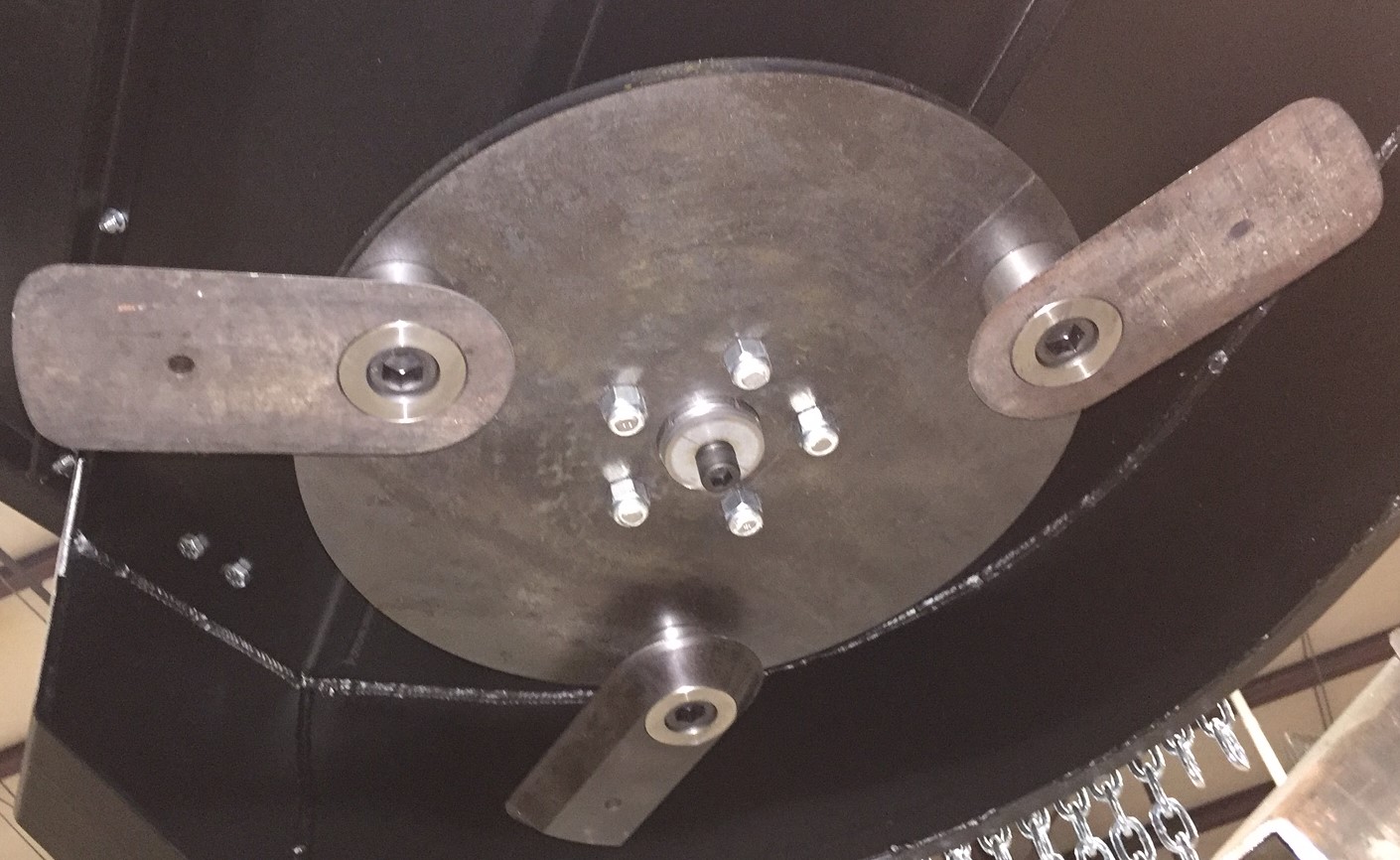

TBB-0461
|
NEW Blade Assembly-Includes Disc, 3 Blades and Both Sets of Bushings (One Side) |
2 Per Machine |
$523.20 |
 |
TBB-0632
|

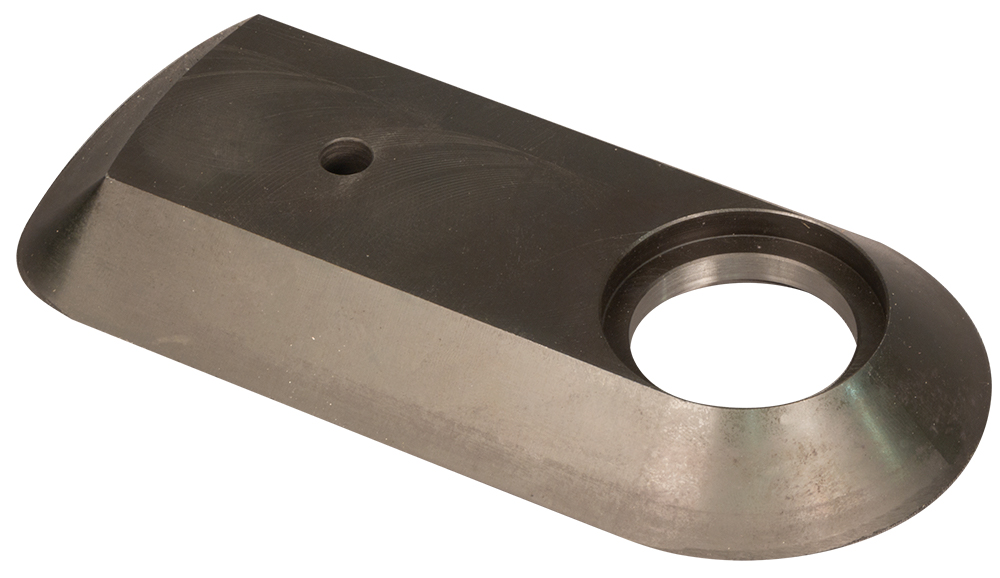

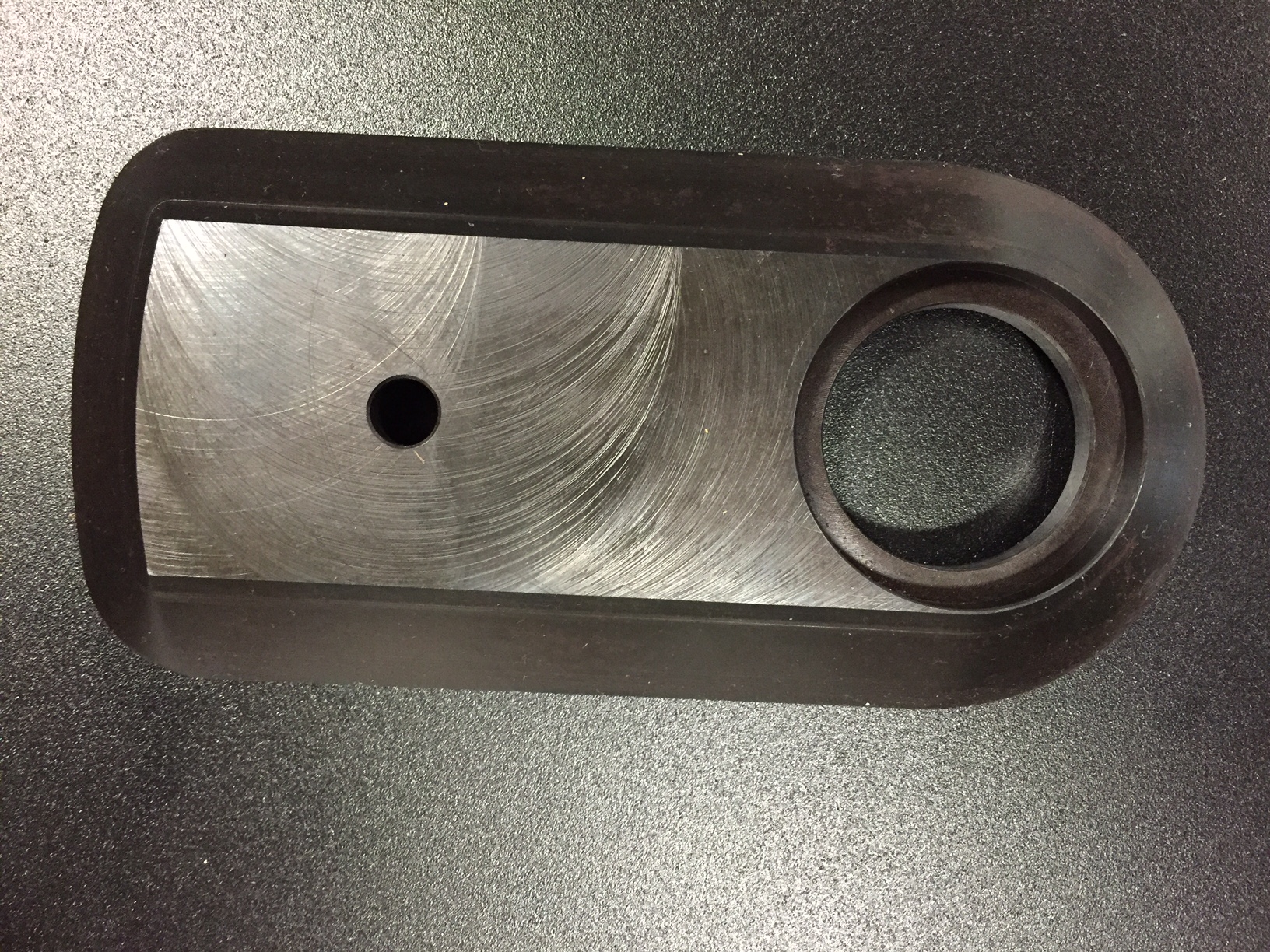

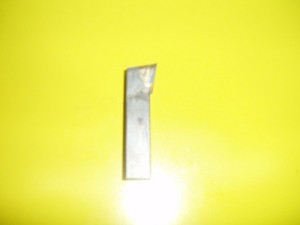

NEW Double Sided Blade. Hardened Steel. Easy to Sharpen. Improved Cut In Tall Grass, Brush and Woody Material |
1 |
$133.84 |

|

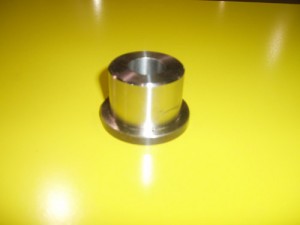

TBB-0456
|

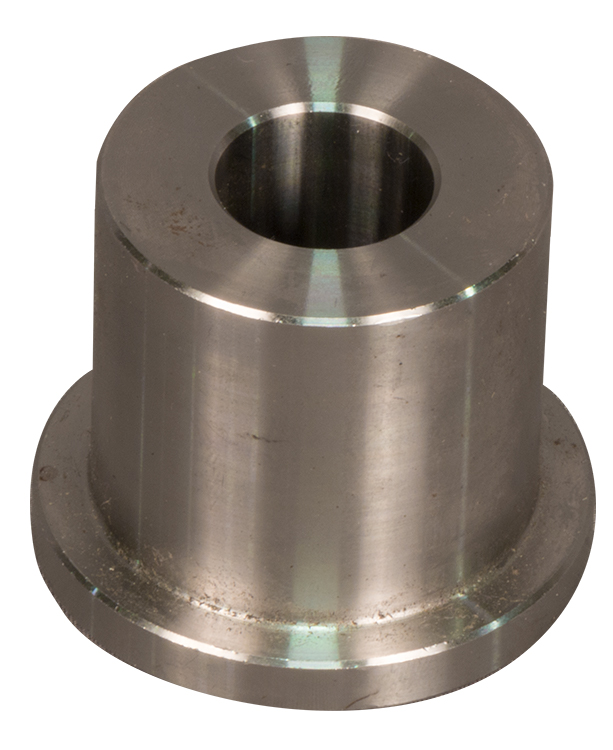

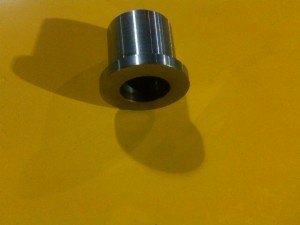

NEW Blade Inner Bushing |
1 |
$34.91 |

|

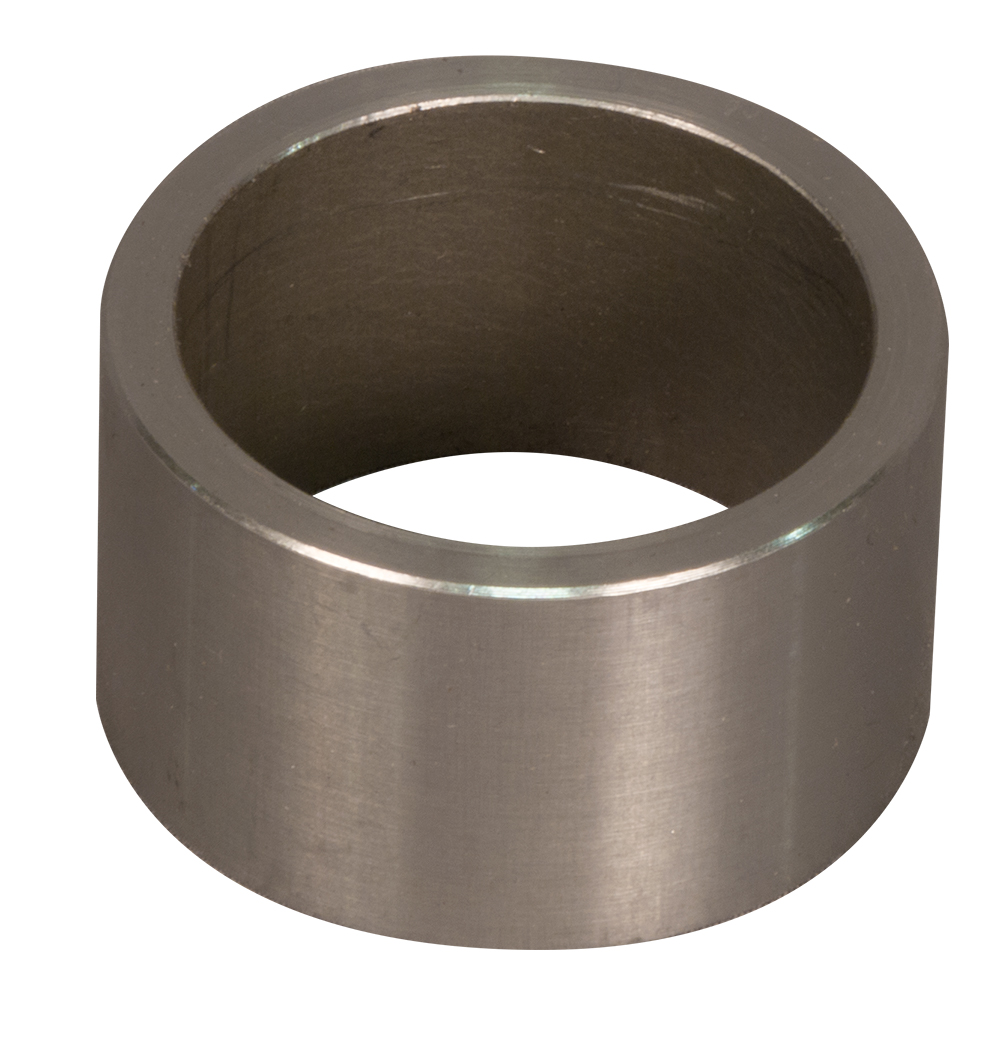

TBB-0457
|
NEW Blade Outer Bushing |
1 |
$17.40 |

|

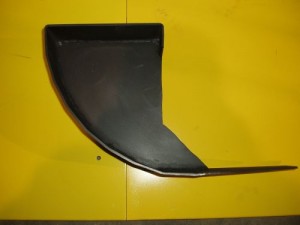

TBB-0329
TBB-0330
|
Deck skid: Optional Caster Replacement. TBB-0329 is the RIGHT skid and TBB-0330 is the LEFT skid |
1 Each Side |
$145.48 |

|

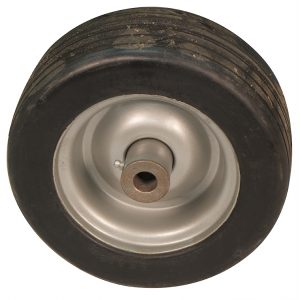

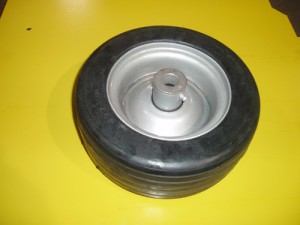

H3408
|
Solid Caster Wheel |
1 |
$34.91 |
 |

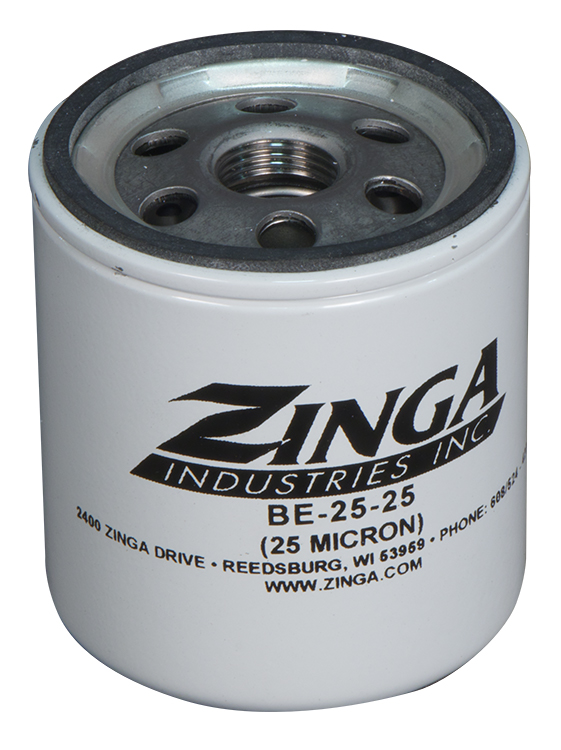

U0030
|
Zinga Hydro Oil Filter |
1 |
$17.45 |

|

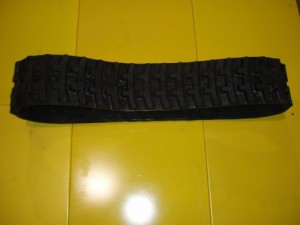

H0143
|

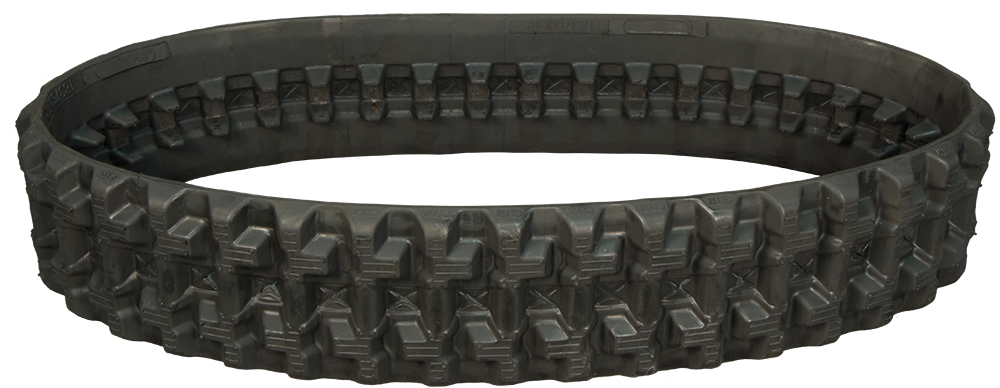

Rubber Track |
1 |
$409.99 |

|

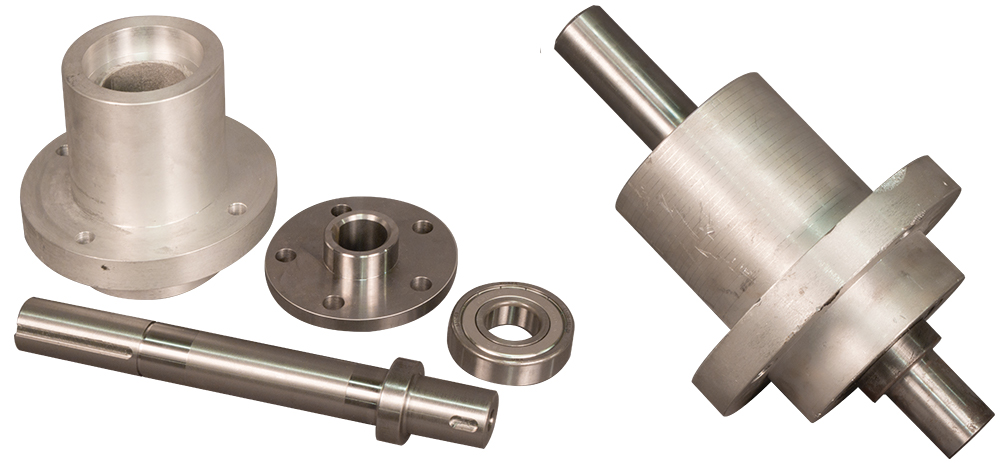

TBB-0278
|

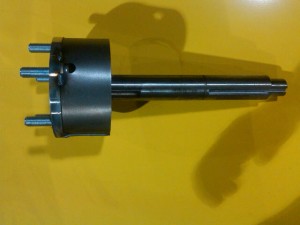

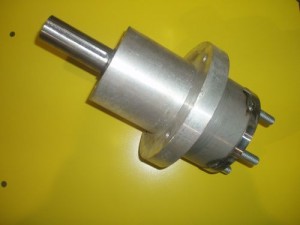

Blade Hub and Shaft Assembly |
2 |
$565.02 |

|

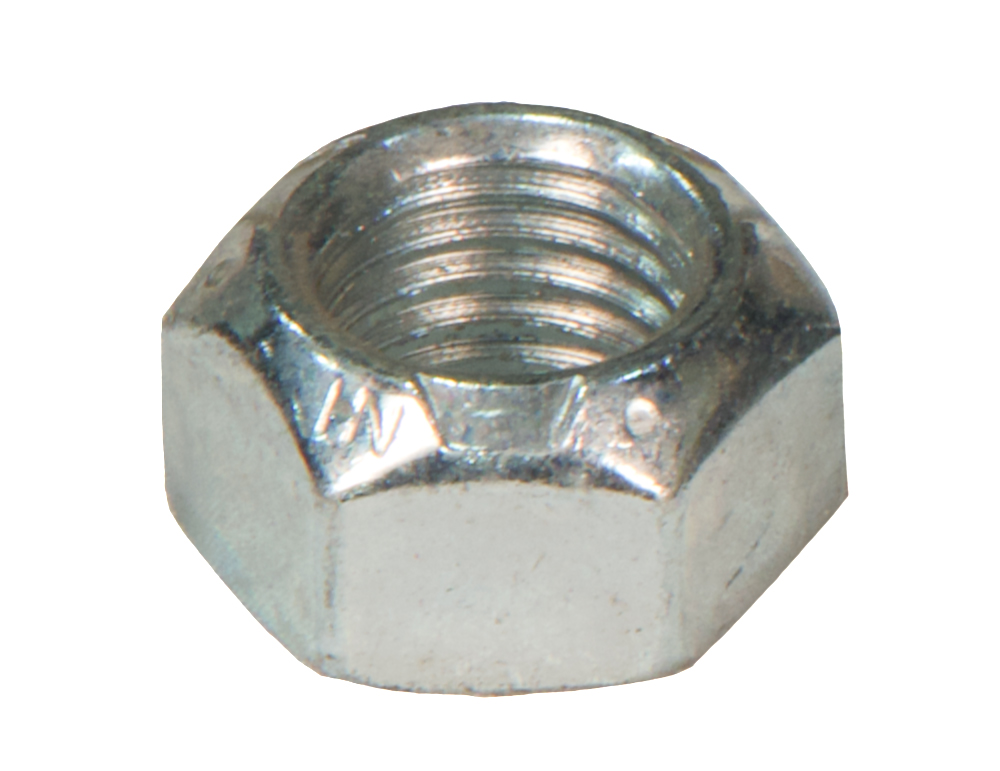

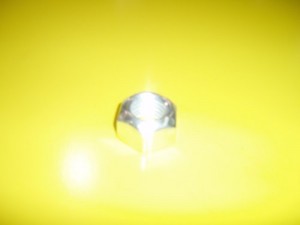

K0302
|
3/4′-10 Lock Nut
BOTH BLADE SYSTEMS |
1 Per Hammer |
$2.32 |
 |

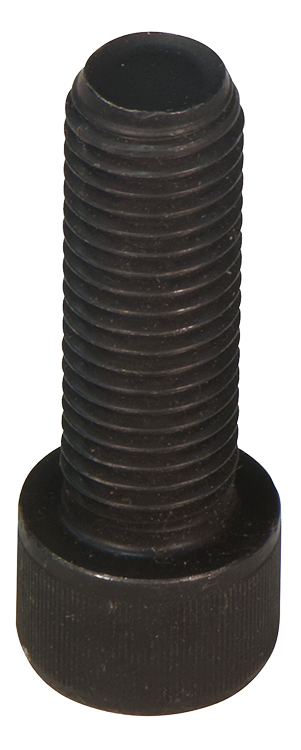

K0298
|

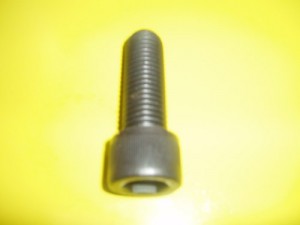

3/4′-10 X 2.25′ Pivot Bolt
BOTH BLADE SYSTEMS |
1 Per Hammer |
$5.81 |

|

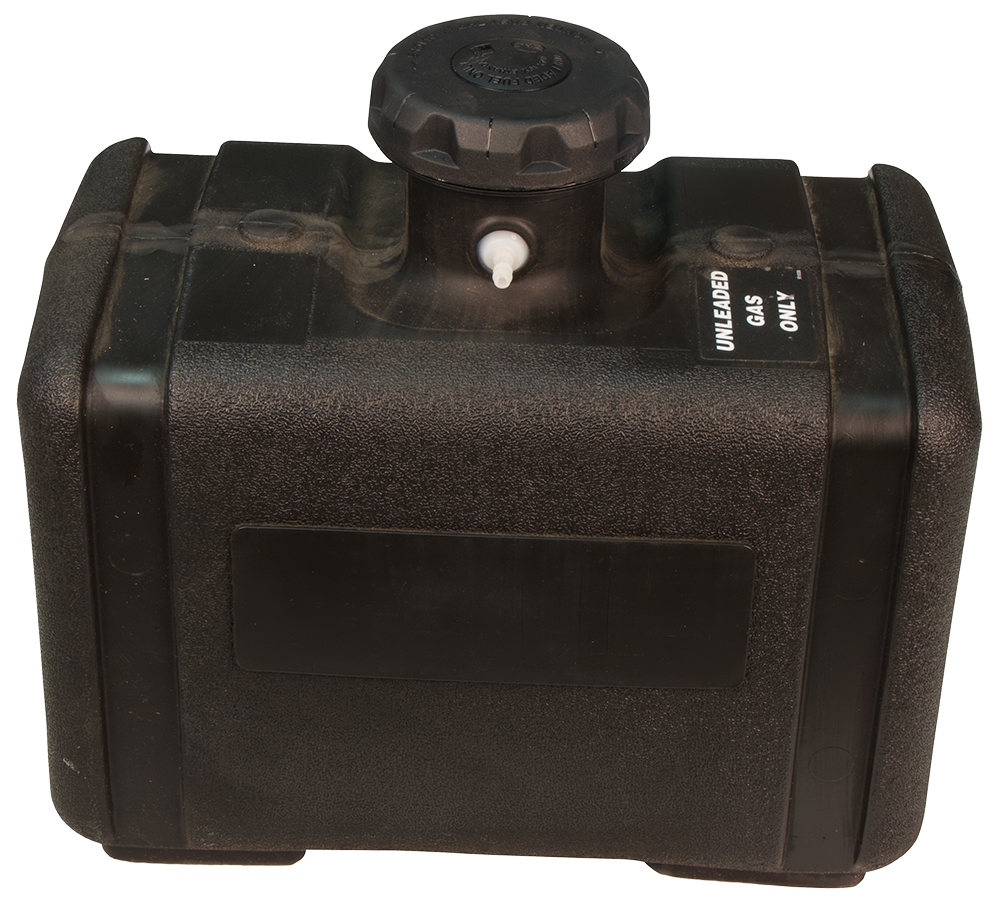

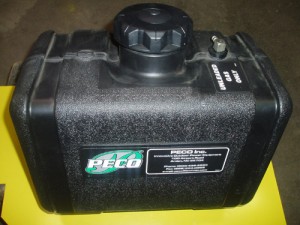

X1076
|
EPA & C.A.R.B. Approved Gas Tank with Tethered Cap |
1 |
$209.50 ($29.96 Cap Only) |

|

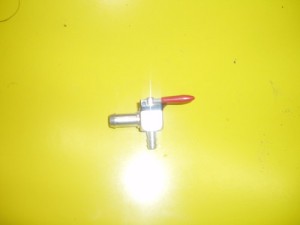

X1050
|
Fuel Valve |
1 |
$13.96 |
 |

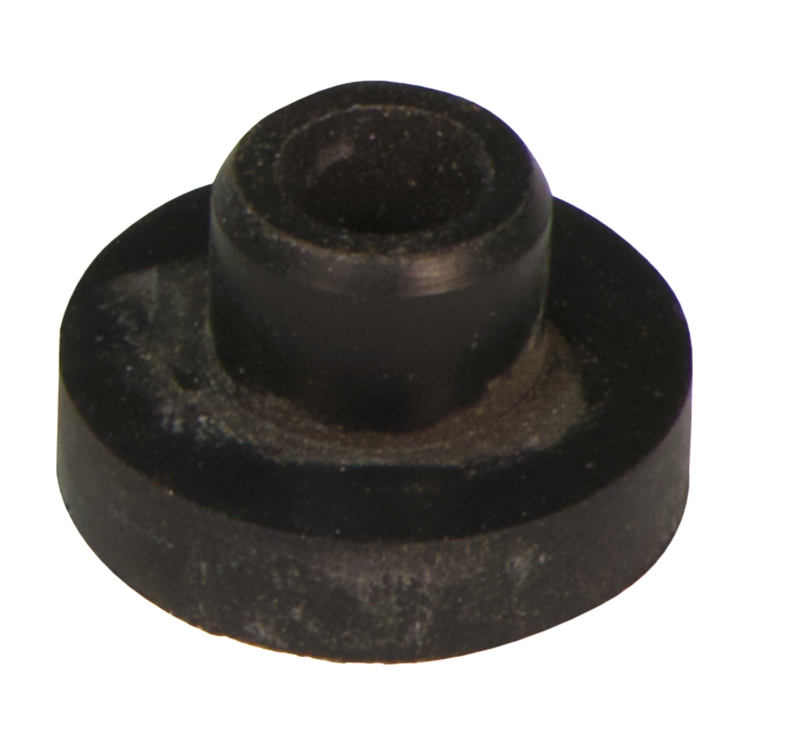

X1051
|

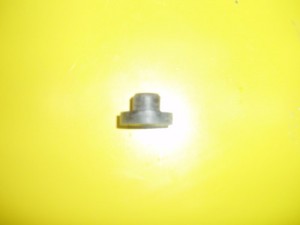

Fuel Tank Bushing |
2 Per Tank |
$3.48 |

|
TBB-0126
|

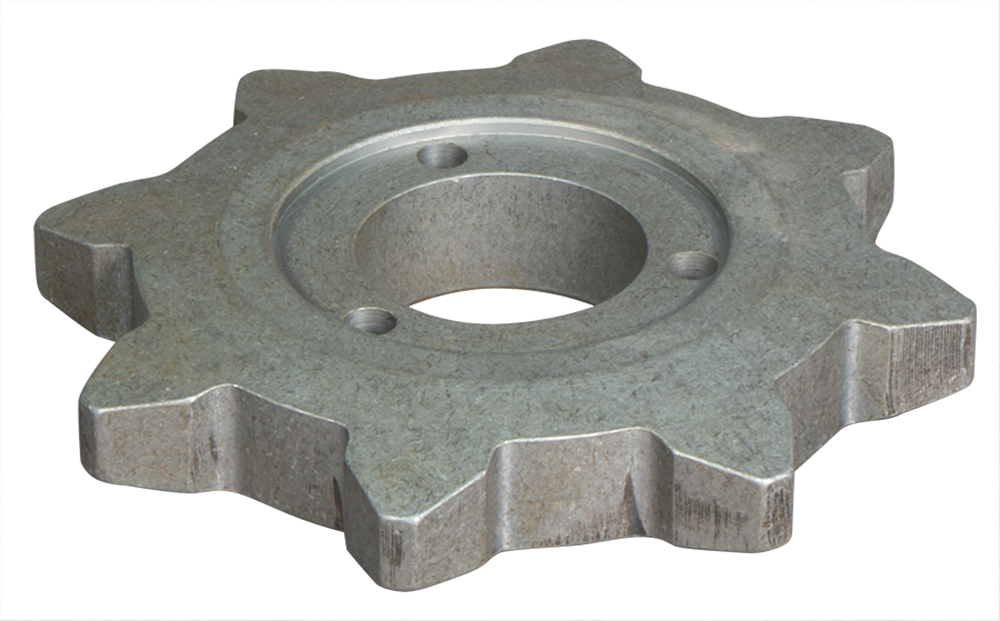

Drive Sprocket |
1 |
$174.58 |

|

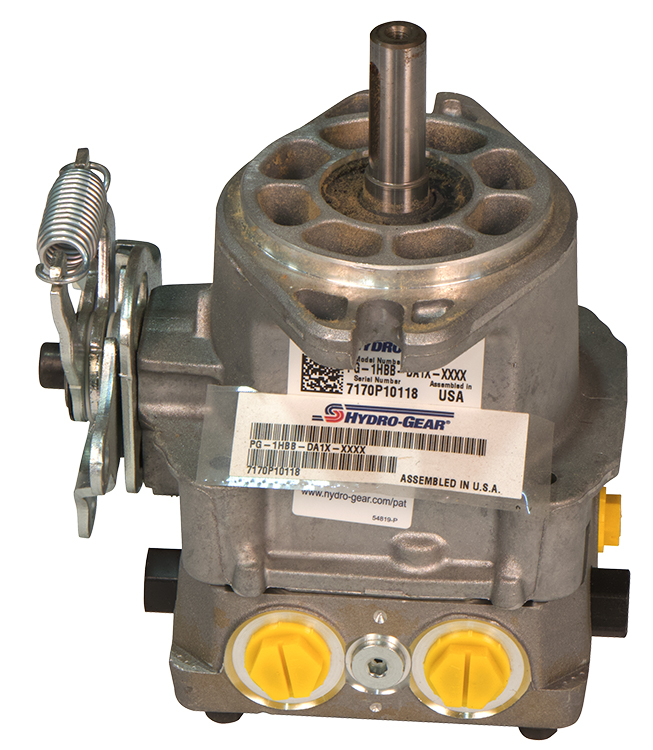

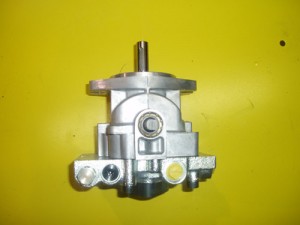

U0011
|
Hydro Pump |
2 |
$675.09 |
 |

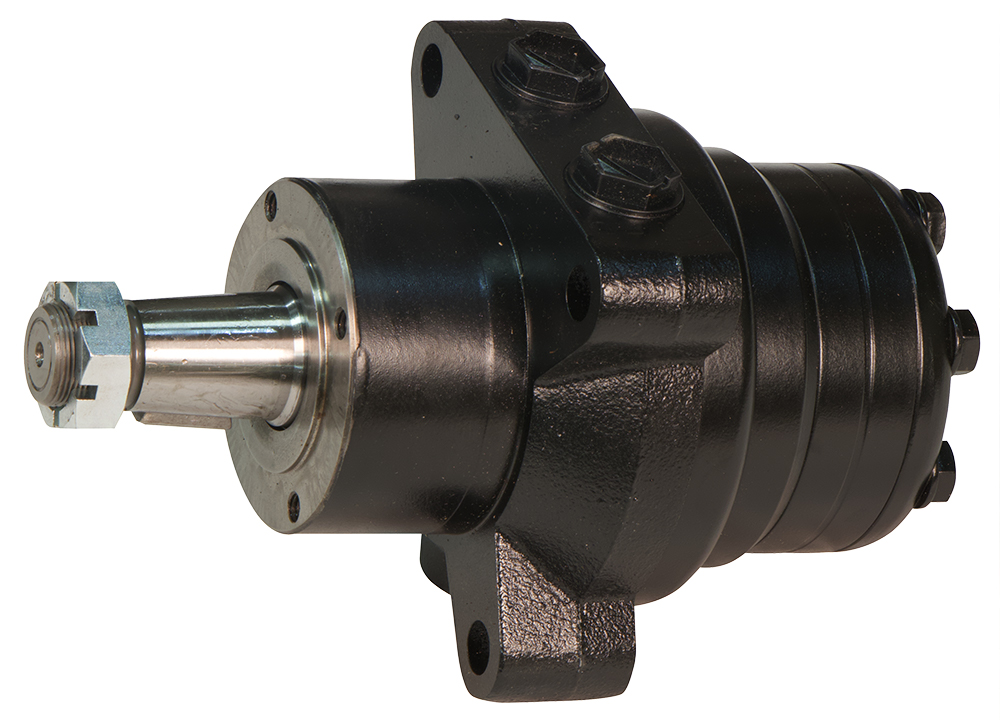

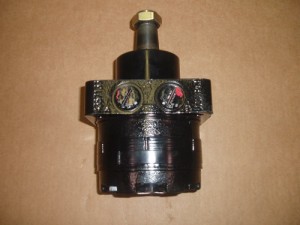

U0200
U0201
|
Hydro Motor (Please Specify Right or Left) |
1 Each Side |
$931.16 |

|

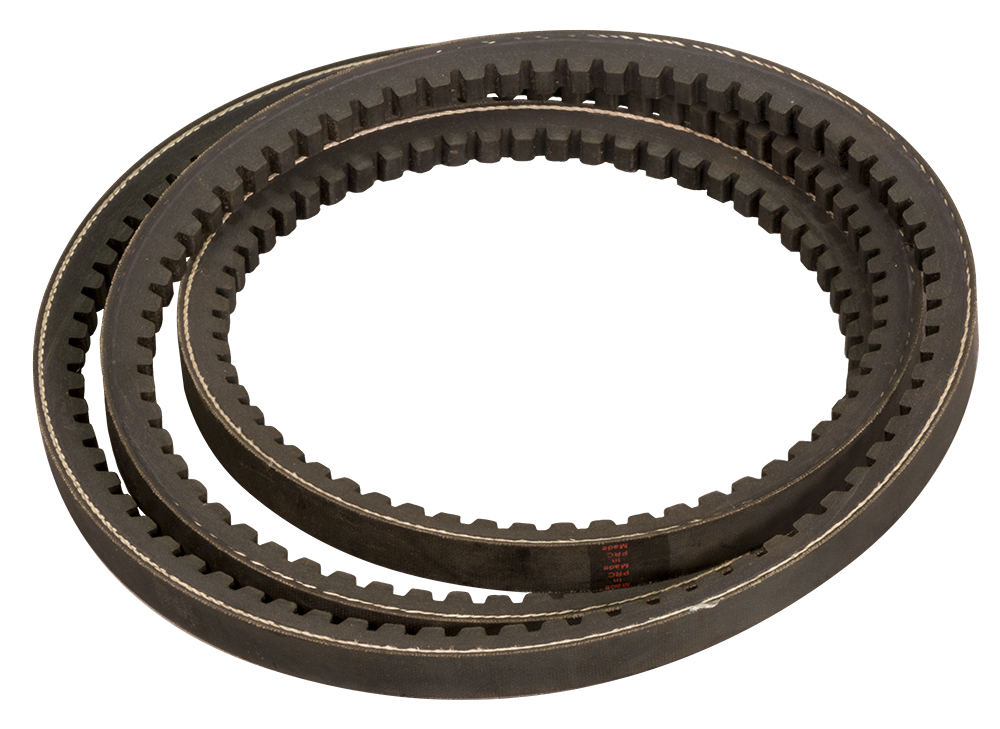

M0305
|

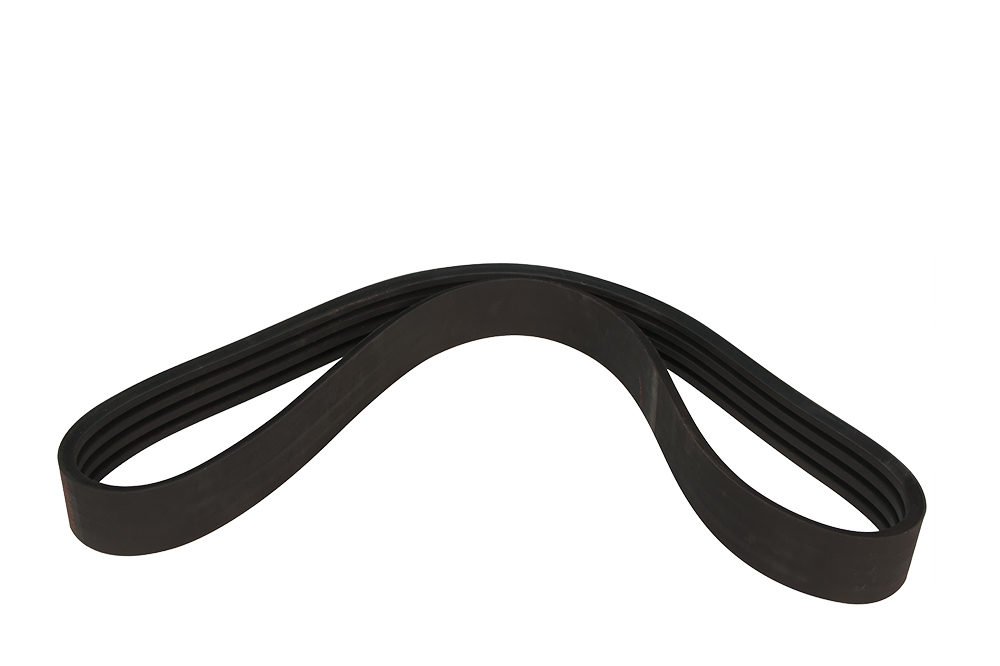

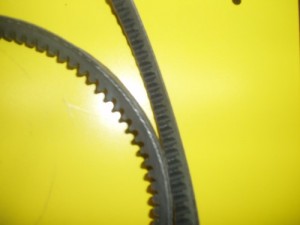

Notched Pump Belt |
1 |
$46.55 |
 |

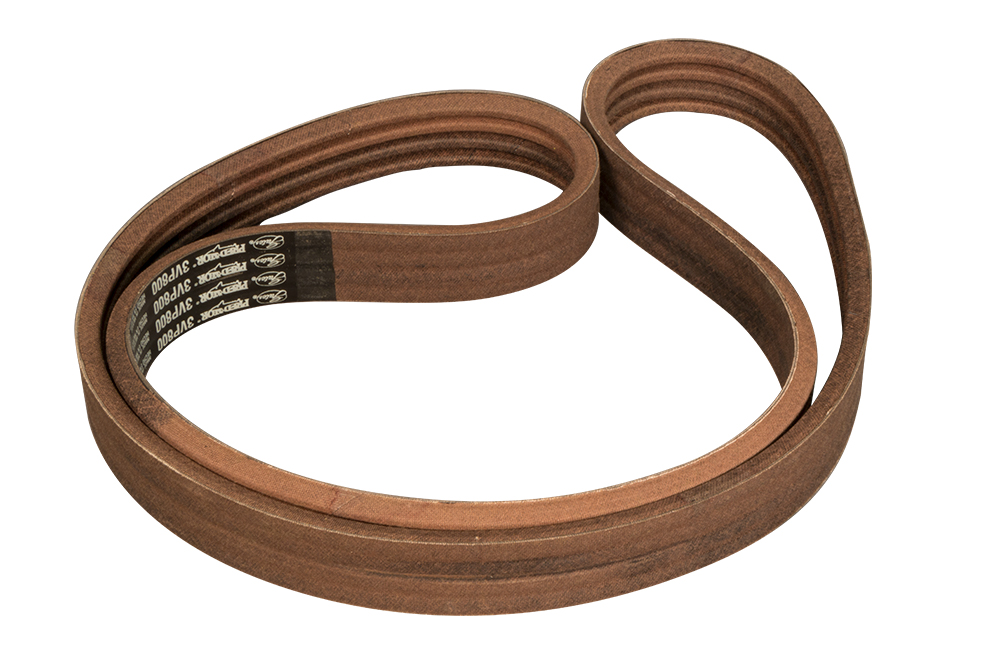

M0233
|
Gates Deck Engagement Drive Belt |
1 |
$290.98 |

|
M0232
|
Deck Belt |
1 |
$221.14 |

|
TBB-0476
|

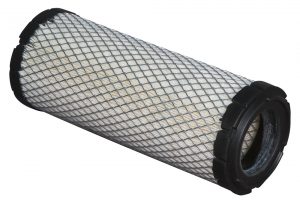

Donaldson Primary Air Filter Element |
1 |
$29.09 |

|

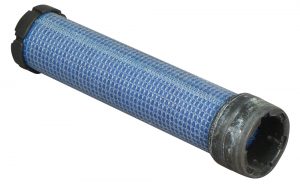

TBB-0477
|
Donaldson Safety Air Filter Element |
1 |
$29.09 |

|
TBB-0023
|

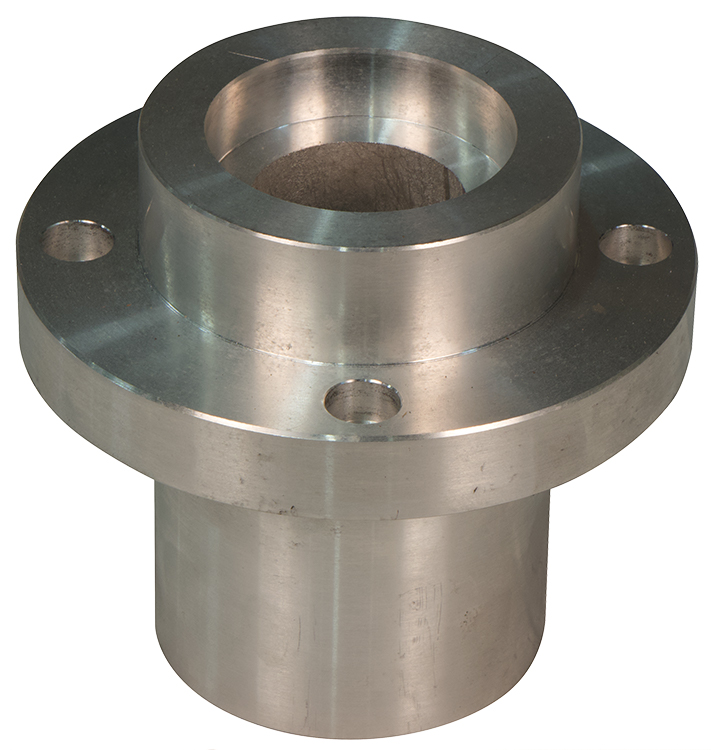

Blade Hub (No Shaft or Bearings Included) |
2 |
$232.78 |
 |
P0085
|

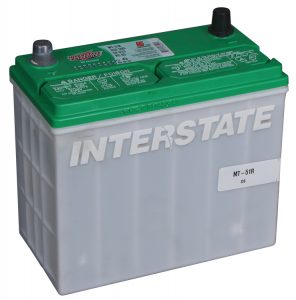

Heavy Duty Battery |
1 |
$154.50 |

|

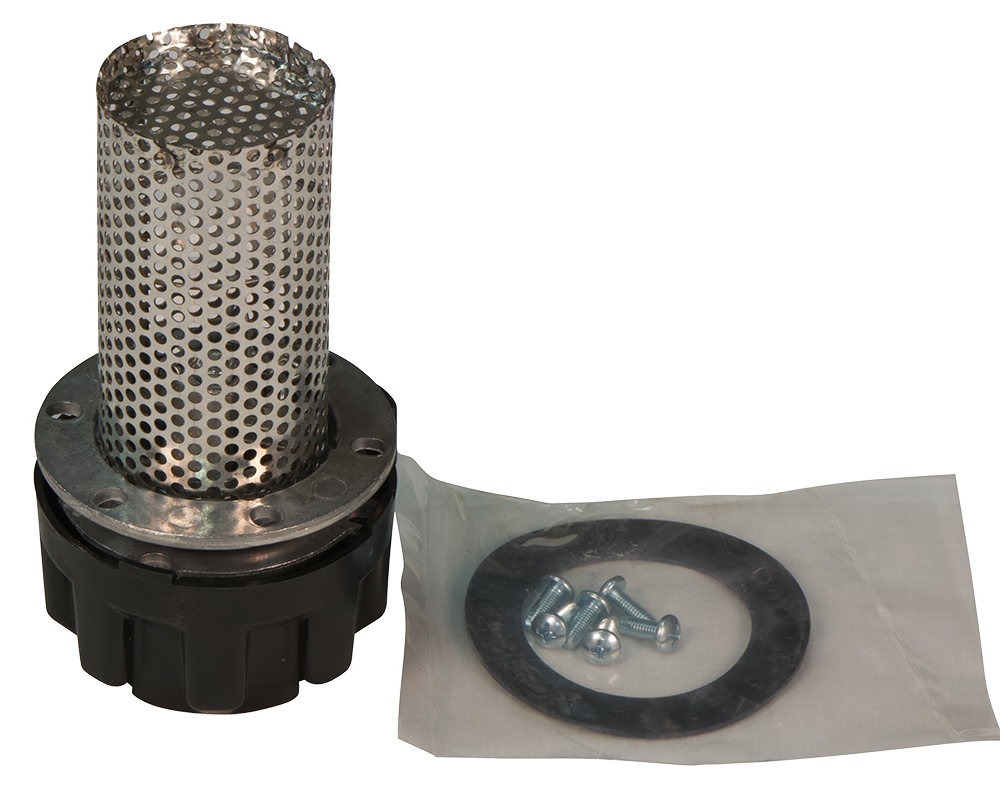

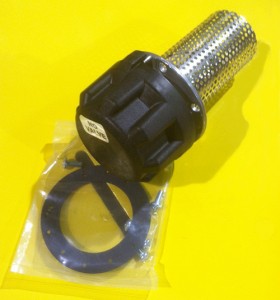

U0002
|
Hydro Tank Filler Cap
Assembly-Includes Filter Cage and Gasket |
1 |
$81.47 |

|
TBB2-0083
|

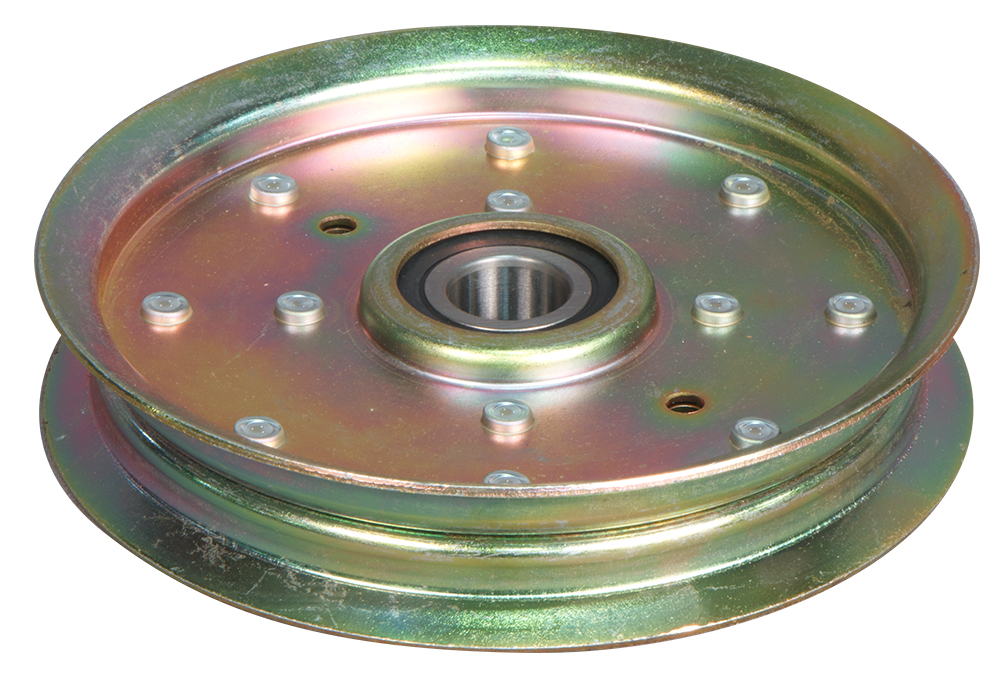

Pump Idler Pulley |
1 |
$74.09 |

|

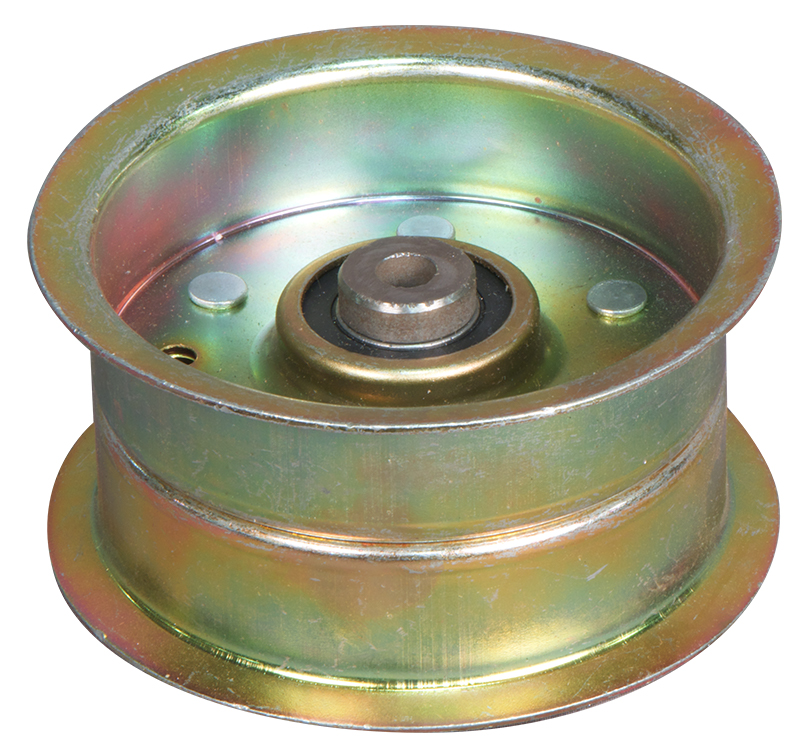

TBB-0056
|
Clutch Pulley |
1 |
$69.08 |

|
S0187
|
Taper Lock Bushing |
1 |
$75.53 |

|

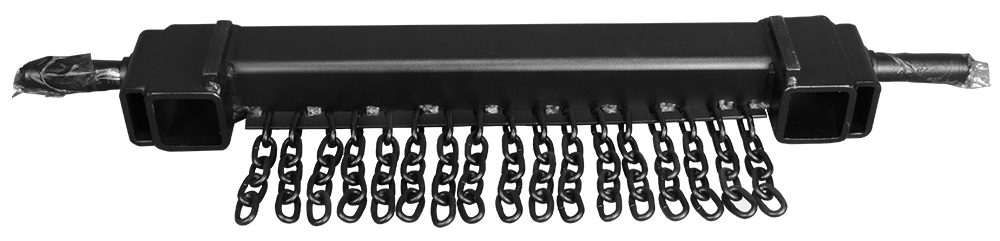

TBB-0421
|
Spring Housing Assembly |
1 |
$297.80 |

|
TBB-0647
|
Front Axel Assembly Kit |
1 |
$203.61 |
 |
TBB-0639
|

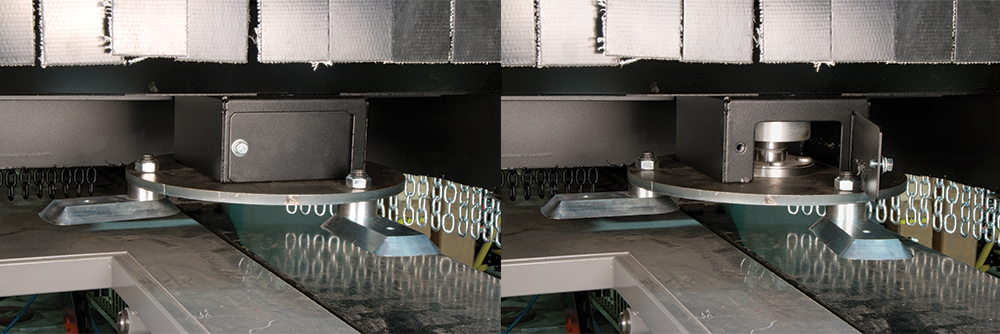

NEW Vine Shield |
1 |
$139.68/Single Shaft |
